Addressing Diverging Training Costs using BEVRestore for High-resolution Bird’s Eye View Map Construction

1Korea Institute of Science and Technology (KIST)
2NAVER LABS
Robotics and Automation Letters (RA-L)

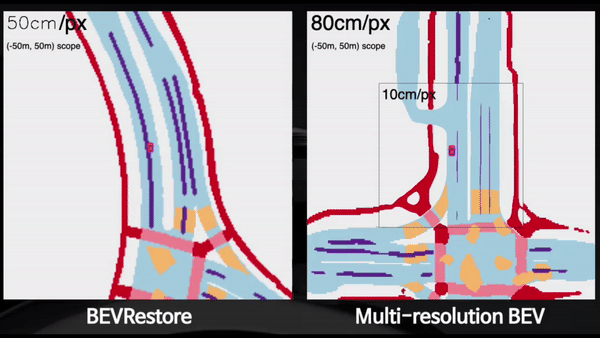

BEVRestore animation

We introduce BEVRestore, a novel plug-and-play restoration of bird's eye view features for high-resolution map construction.

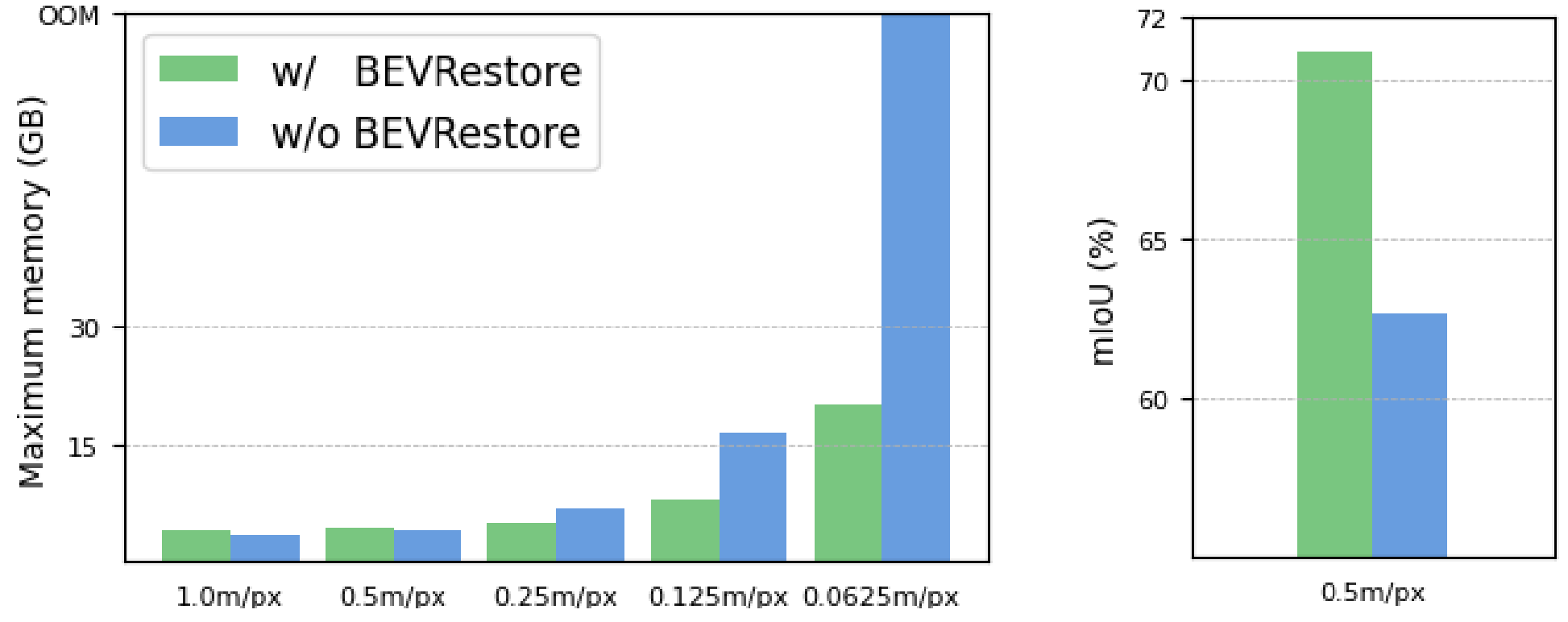

Teaser animation

Our approach achieve (Left) costly efficient but (Right) fine-grained high-resolution (HR) BEV map construction.

Abstract

Recent advancements in Bird's Eye View (BEV) fusion for map construction have demonstrated remarkable mapping of urban environments. However, their deep and bulky architecture incurs substantial amounts of backpropagation memory and computing latency. Consequently, the problem poses an unavoidable bottleneck in constructing high-resolution (HR) BEV maps, as their large-sized features cause significant increases in costs including GPU memory consumption and computing latency, named diverging training costs issue. Affected by the problem, most existing methods adopt low-resolution (LR) BEV and struggle to estimate the precise locations of urban scene components like road lanes, and sidewalks. As the imprecision leads to risky motion planning like collision avoidance, the diverging training costs issue has to be resolved. In this letter, we address the issue with our novel BEVRestore mechanism. Specifically, our proposed model encodes the features of each sensor to LR BEV space and restores them to HR space to establish a memory-efficient map constructor. To this end, we introduce the BEV restoration strategy, which restores aliasing, and blocky artifacts of the up-scaled BEV features, and narrows down the width of the labels. Our extensive experiments show that the proposed mechanism provides a plug-and-play, memory-efficient pipeline, enabling an HR map construction with a broad BEV scope.

Presentation

Experimental Results

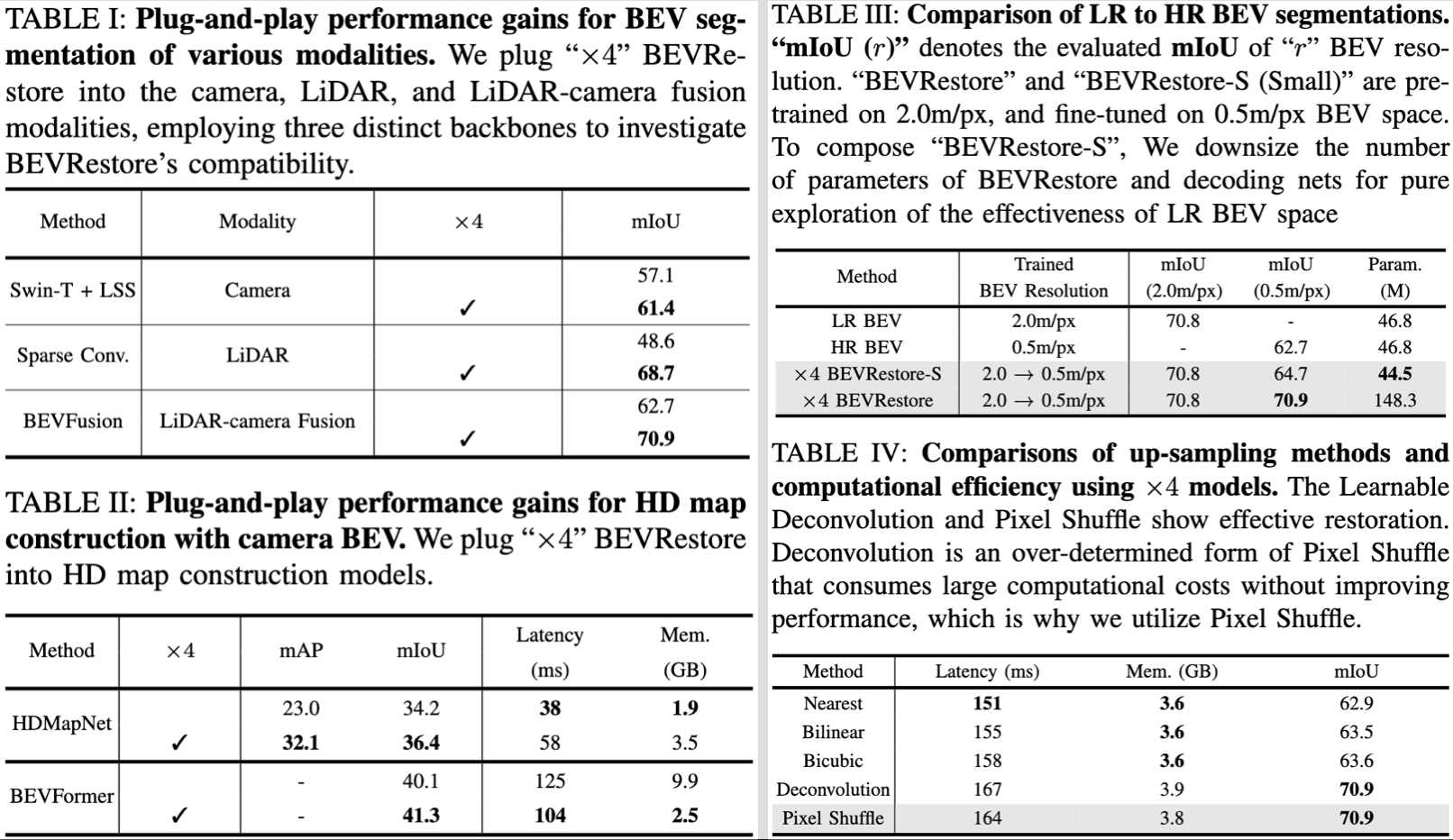

Example table showing statistical data

BibTeX

@article{kim2024addressing,
  title={Addressing Diverging Training Costs Using BEVRestore for High-Resolution Bird's Eye View Map Construction},
  author={Kim, Minsu and Kim, Giseop and Choi, Sunwook},
  journal={IEEE Robotics and Automation Letters},
  year={2024},
  publisher={IEEE}
}
